Ford Escape Key Replacement Arlington TX (2026): Cost by Year
What does a Ford Escape key cost in Arlington?
As of September 2026, a Ford Escape key in Arlington costs $180 to $460 cut and programmed at your vehicle, and which end of that band you land on is decided almost entirely by model year. An early bladed transponder key is the cheap end. A 2020-or-newer proximity smart fob is the top. Call or text (817) 646-7134 with the year and we will quote a flat rate before anyone is dispatched.
The Escape is one of the most common vehicles on Arlington roads, and it has run through four distinct key architectures since 2001. Getting the generation right is most of getting the price right.
Four generations, four different keys
2001 to 2007 (first generation). A plain bladed transponder key. Metal blade, fat plastic head with a chip inside. Some later years of this run added a separate remote on the keyring for locks. Cheapest Escape key on the road, and the fastest to make.
2008 to 2012 (second generation). Still a bladed transponder key, frequently paired with a separate four-button remote. Mechanically simple, and where the 80-bit PATS system is mature and well supported.
2013 to 2019 (third generation). The remote head key becomes standard: blade and remote buttons in a single moulded unit. Intelligent Access, Ford's proximity system with push-button start, arrives as an option on higher trims. This is the generation where two Escapes of the same model year can take completely different keys, so trim matters.
2020 to 2026 (fourth generation). Proximity smart fob with push-button start as standard across the range. The most expensive Escape key, and the one where the part cost rather than the labour drives the number.
The five-second check, if you are unsure: do you push a key into a cylinder and turn it, or do you keep the fob in your pocket and press a button? That single answer moves the quote more than anything else on this page.
Ford Escape key cost in Arlington by year
Real 2026 Dallas-Fort Worth figures for on-site mobile work. Exact numbers depend on trim and whether a working key exists.
| Escape years | Key type | Spare key (working key present) | All keys lost |
|---|---|---|---|
| 2001 - 2007 | Bladed transponder | $180 - $250 | $240 - $340 |
| 2008 - 2012 | Bladed transponder + remote | $190 - $280 | $250 - $370 |
| 2013 - 2019 (standard) | Remote head key | $220 - $330 | $290 - $420 |
| 2013 - 2019 (Intelligent Access) | Proximity smart fob | $280 - $420 | $350 - $460 |
| 2020 - 2026 | Proximity smart fob | $300 - $440 | $370 - $460 |
Two notes on reading that table. The all-keys-lost column is not a surcharge, it is a different job, explained below. And every figure is mobile work at your location, so there is no tow line underneath it, which matters because an Escape with no working key is an Escape that cannot drive to a service department.
For how those numbers compare against the dealership route across the whole category, our locksmith versus dealer cost breakdown works the comparison through in detail.
How Ford PATS decides the price
Every Escape since the first generation runs PATS, the Passive Anti-Theft System. It is Ford's immobiliser: a module holding a list of key credentials it trusts, refusing to release fuel and ignition to anything not on that list.
Adding a key means getting PATS to accept a new credential, and that requires either an already-trusted key to authenticate with, or security access established through equipment. Which of those two applies is the single biggest cost driver on any Escape.
"Vehicle security information should only be released to properly identified and vetted individuals, and the vehicle owner must be verified as part of that process." — National Automotive Service Task Force (NASTF)
A legitimate locksmith works through authorised channels for that access, and verifies that the person standing beside the vehicle is entitled to a key for it. The NASTF Vehicle Security Professional programme governs how that works across the industry. In Texas, the locksmith performing the work operates under the Texas DPS Private Security Program.
A shop that will program an Escape key without asking for identification is skipping the step the entire system rests on.
Why all keys lost costs more
Three things stack when there is no working key in the vehicle.
The blade has to be originated. With no key to copy, the cutting pattern comes from vehicle data tied to the VIN and is cut fresh. On proximity Escapes there is still an emergency blade inside the fob that has to be cut correctly, even though you may never use it.
Security access has to be established first. Before PATS will listen at all, the technician has to get in, and that step includes the ownership verification above.
Some model years impose a timed wait. On a number of Ford model years, writing a first key into an empty PATS module involves a security delay measured in minutes that no equipment shortens. It is a designed-in defence against exactly the attack the procedure resembles, and it is why an all-keys-lost visit takes longer than people expect.
Our all keys lost service page covers what that visit includes end to end.
The two-key rule worth knowing about
Several older PATS model years support an onboard programming procedure: with two already-programmed keys present, a third can be added through a sequence of ignition cycles with no equipment at all.
That sounds like free key programming, and for the owners who qualify it very nearly is. The catch is the word two. If you are down to one key, the shortcut is closed and the job needs a programmer.
This is the strongest practical argument for getting a spare made while your current key still works. An Escape owner with two keys has options. An Escape owner with one key has a bill waiting, and the used-car second-key guide runs those numbers for anyone who bought their vehicle with a single key in the envelope.
Where the dealership is genuinely required
Rarely, and an honest shop tells you before taking a deposit.
A failed PATS or body control module. If the module has died rather than simply lost its key list, that is module work, not key work. The tell is a vehicle that also refuses a known-good key that worked yesterday.
A vehicle whose ownership documentation does not resolve. In that case nobody should be making a key, locksmith or dealer, and that is the system working correctly.
Everything else, every Escape generation in ordinary ownership, is on-site work in an Arlington driveway, apartment lot or workplace parking space. Ford is one of the better-supported makes in the aftermarket, which is exactly why the price gap against a dealer quote is as wide as it is on this platform.
Escape-specific things worth checking first
Before assuming you need a key, two cheap causes are worth ruling out, because they account for a fair share of the Escape calls we take.
The fob battery. A CR2032 in most Escape fobs. On a proximity Escape, a flat cell produces a car that says no key detected and behaves exactly like a key fault. There is a backup path: hold the fob against the start button and press. If the Escape starts that way, your credential is intact and you need a battery, not a key. The full sequence is in our dead key fob battery guide.
The 12-volt vehicle battery. A weak battery browns out the PATS module during cranking and produces convincing key-fault symptoms. If the dash lights dim hard when you try to start, chase that first. Our post-battery-change diagnostic covers the related case where a fresh battery leaves the fob apparently dead.
If the Escape cranks but never fires and the security light is lit, that is a different fault with its own sequence, covered in the cranks but will not start guide.
What an Arlington visit looks like

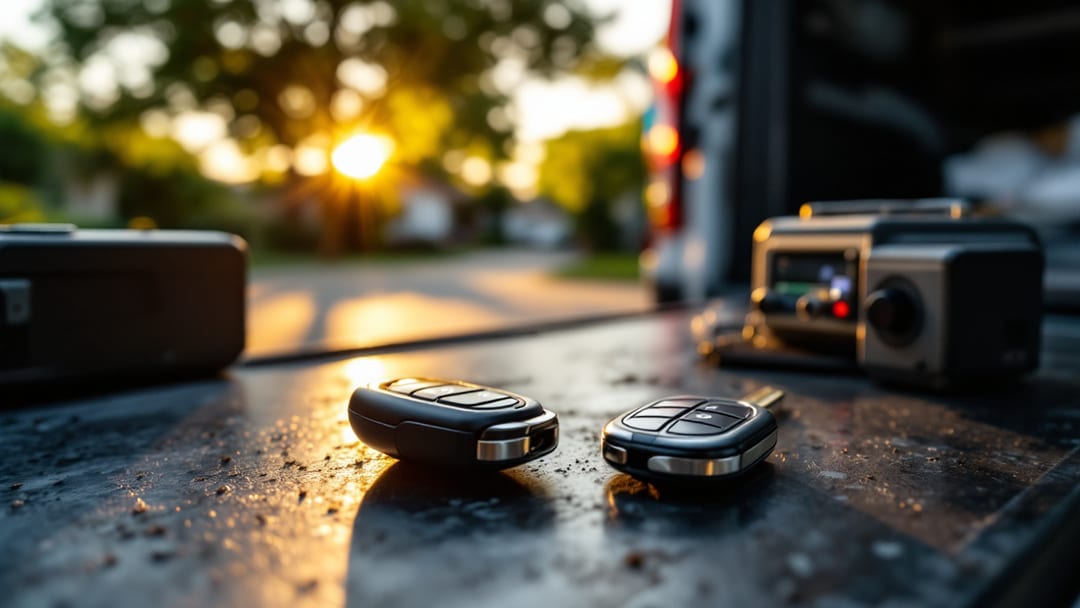

The van carries Escape blanks across all four generations, a cutting machine and the diagnostic equipment that talks to PATS. The vehicle stays parked where it is. Ownership is verified, the blade is cut, the credential is written, and everything is tested before anyone leaves: start, remote lock and unlock, panic, and on proximity Escapes the passive entry handles and the liftgate.
Other Ford work on this site follows the same pattern. The Explorer fob programming guide covers a close relative of the third-generation Escape system, and the F-150 key replacement guide covers Ford's truck side, where the same PATS logic applies with different hardware. General Ford platform notes live on our Ford key programming page.
Federal safety bodies still cite immobiliser systems as among the most effective vehicle theft deterrents in service, and the NHTSA vehicle theft prevention resources cover why that protection is deliberately awkward to work around. The awkwardness is the point, and it is also most of what an Escape key costs.
Frequently Asked Questions
How much does a Ford Escape key cost in Arlington TX?
As of September 2026, an Escape key in Arlington runs $180 to $460 cut and programmed at your vehicle. An older bladed transponder key for a 2001 to 2012 Escape sits at the bottom of that band, a remote head key for a 2013 to 2019 sits in the middle, and a proximity smart fob for a 2020 or newer sits at the top. All keys lost adds to whichever tier applies.
Which key does my Ford Escape generation use?
Roughly, 2001 to 2007 uses a plain bladed transponder key, 2008 to 2012 uses a bladed key often with a separate remote, 2013 to 2019 uses a remote head key with Intelligent Access proximity optional on higher trims, and 2020 onward is proximity smart fob with push-button start as standard. The fastest check is whether you insert and turn a key or press a button.
Can a locksmith program a Ford Escape key without the dealer?
In almost every case, yes. Ford PATS is well supported by current aftermarket equipment, and a mobile automotive locksmith carries the blanks, the cutting machine and the programmer needed to add a key at your location. The dealer route adds a service appointment and, if the Escape will not start, a tow that a mobile visit avoids entirely.
Why does all keys lost cost more on an Escape?
With a working key present the module can simply be told to accept one more credential, which is a short session. With no key at all the blade has to be originated from vehicle data rather than copied, security access has to be established first, and on many Ford model years a timed security wait applies that no equipment can shorten. That is more time and more verification, so the price steps up.
Does the Ford Escape need two keys to program a third?
On some older PATS model years, yes. Certain Escape years support an onboard programming procedure that requires two already-programmed keys present to add a third without equipment. If you only have one key, that shortcut is unavailable and the job needs a programmer, which is one reason a second key is worth having before you need it.
Will a used Ford Escape fob from online work?
Sometimes. The part has to match the exact frequency and part number for your year and trim, and many used fobs are already locked to a previous vehicle and cannot be rewritten to yours. Send the FCC ID and part number printed on the back before ordering anything and you will get a straight answer rather than a gamble on a part that may be unusable.
How long does an Escape key take to program in Arlington?
With a working key present, a spare Escape key is usually cut, programmed and tested in 20 to 40 minutes at your location. With no working key, expect 45 to 90 minutes, longer on model years that impose a timed security delay before a first key can be written. Either way the vehicle stays where it is parked.
What do I need to have ready before the technician arrives?
Identification that matches the vehicle registration or title, the vehicle itself accessible, and ideally the year and trim to hand. Proof of ownership is required before any key is produced, without exception. Knowing whether your Escape uses an inserted key or a start button also lets the price be quoted accurately before anyone is dispatched.
Need an Escape key in Arlington? Here is how to reach us
Send the year, the trim if you know it, and whether you still have a key that starts the vehicle, then call or text (817) 646-7134 for a flat rate before dispatch. We cover North Arlington, South Arlington, the Entertainment District, and Dalworthington Gardens and Pantego. Car keys only, mobile, no tow, no dealer appointment.
